Driving assistance

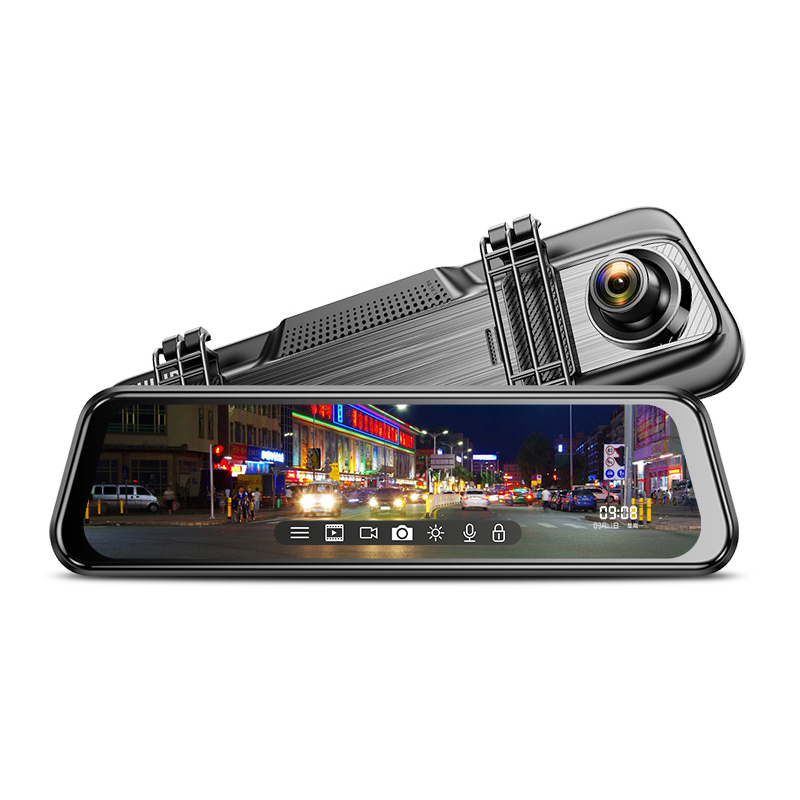

Driving recorder
-
Description
-
Recommended Devices
Part Number Type Package VDS (V) VGS ±(V) ID(A) VGS(th) (max V) RDS(ON) @ 10V Typ. (mΩ) RDS(ON) @ 4.5V Typ. (mΩ) RDS(ON) @ 2.5V Typ. (mΩ) RDS(ON) @ 1.8V Typ. (mΩ) Qg (nC) Ciss(pF) WSD30L120DN56 P-Channel DFN5X6-8 -30 20 -120 -2.5 2.9 5 - - 135 6100 WSP05N15 N-Channel SOP-8 150 25 6 4 37 48 - - 23 1160 WSD40N10GDN56 N-Channel DFN5X6-8 100 20 40 2.5 16 22 - - 19.8 1191 WSD45N10GKDN56 N-Channel DFN5X6-8 100 20 45 4 14.5 - - - 42 1800 WSD50P10DN56 P-Channel DFN5X6-8 -100 20 -34 -3 32 38 - - 56 2480 WSD60N10GDN56 N-Channel DFN5X6-8 100 20 60 2.5 8.5 9.5 - - 49.9 2604 WSD90P06DN56 P-Channel DFN5X6-8 -60 20 -90 -2.5 10.5 13.5 - - 121 5600 WSD100N06GDN56 N-Channel DFN5X6-8 60 20 100 2.5 3.0 4.4 - - 58 3458 WSD3040DN56 N-Channel DFN5X6-8 30 20 50 2.5 7 9.2 - - 16 930 WSD3042DN56 N-Channel DFN5X6-8 30 20 40 1.3 9 9.6 - - 16 1150 WSD4023DN56 N+P Channel DFN5X6-8 ±40 20 32/-22 ±2.5 16/30 18/46 - - 5.5/9 593/1004 WSP4606A N+P Channel SOP-8 ±30 20 6.8/-5.6 ±2.5 22/45 30/60 - - 3.5/13.6 373/760 WSP9936 Dual N-Channel SOP-8 20 12 8 1.1 - 15 19 - 15.6 520 WSD30100DN56 N-Channel DFN5X6-8 30 20 100 2.5 3.3 4.6 - - 9.2 1350 WSD30140DN56 N-Channel DFN5X6-8 30 20 85 2.5 1.7 2.5 - - 26 3000 WSD30150DN56 N-Channel DFN5X6-8 30 20 150 2.5 1.8 2.4 - - 26 3200 WSD30160DN56 N-Channel DFN5X6-8 30 20 120 2.5 1.9 2.9 - - 38 4900 WSD40120DN56G N-Channel DFN5X6-8 40 20 120 2.2 1.4 2 - - 45 3972 WSD75100DN56 N-Channel DFN5X6-8 75 25 100 4 5.3 - - - 65 3500 WSD80100DN56 N-Channel DFN5X6-8 80 20 100 4 6.1 - - - 125 4900
- Download
